Pi 4 Enclosure with Clock Mount
A printed box for a Raspberry Pi 4 and a DS3231 clock board, with openings for power, the screen's ribbon cable and its power lead.
Max 10 per order
- Made in the USA
- Printed in ASA
- Hardware included
- Secure Shopify checkout
Build your own
SpooledOS Community is free and open source. The guide walks you through the Pi, the screen, the wiring and a one-command install.
Read the build guideWhat it does

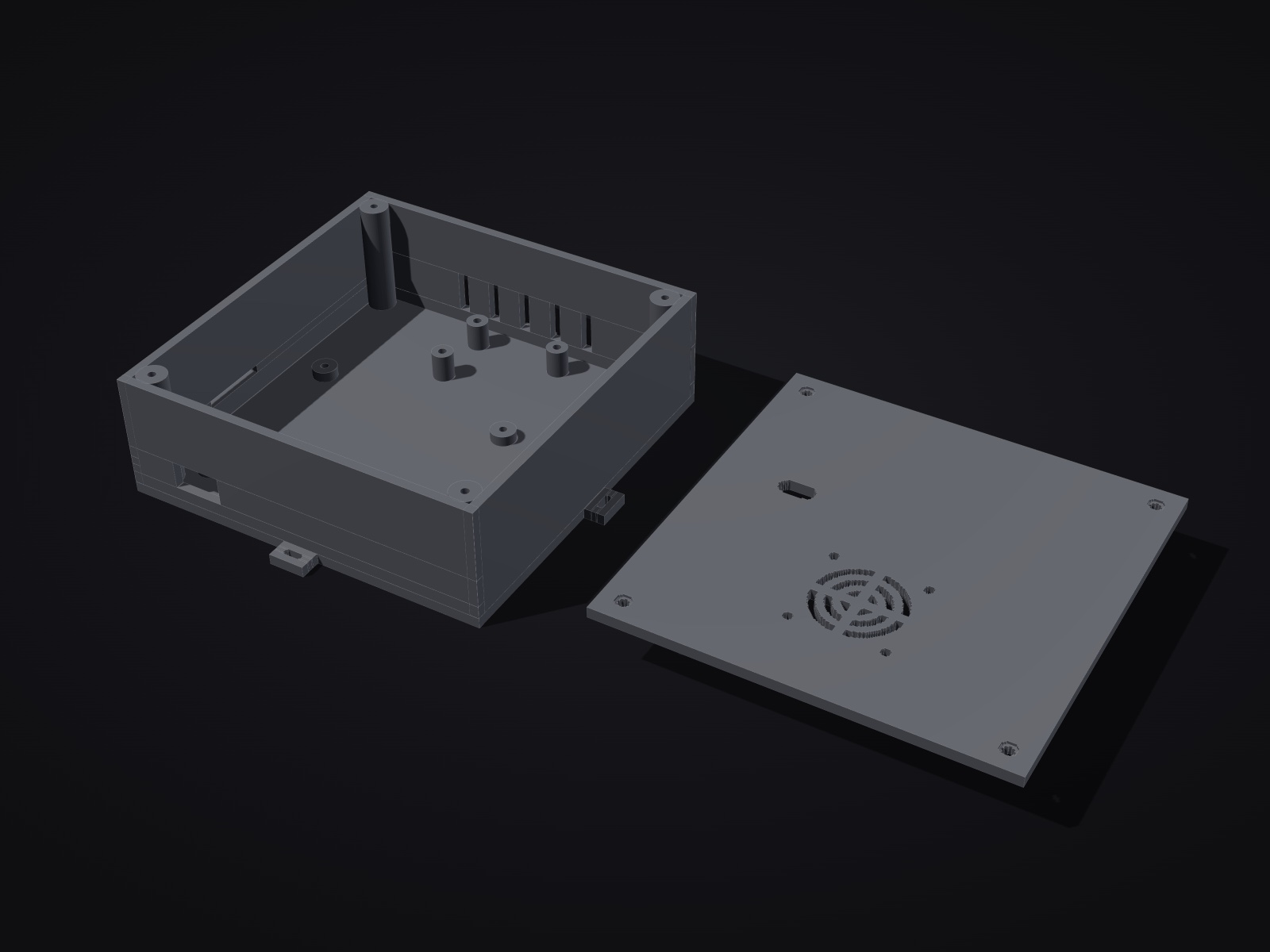

A Pi left loose behind the dash rattles, and anything metal back there can short it. This closes it up: the Pi sits on four posts, the clock board has its own bay along the back wall, and every cable leaves through an opening made for it.
Four ears with cable-tie slots let you strap it to a bracket or a harness wherever there's room.
- Pi and clock in one box
- The Pi 4 screws to four posts, and a DS3231 clock board gets its own bay, so log names keep the right date with the car off.
- Airflow
- Intake slots along the back wall, and a grille in the lid with screw holes for a 40 mm fan.
- An opening for every cable
- USB-C power in, a slot for the screen's ribbon cable, and one in the lid for the lead that powers the screen.
- Straps down anywhere
- Four ears with slots for standard cable ties.
- Printed in ASA
- ASA stands up to heat and sun, so it keeps its shape in a car parked outside, where PLA would soften.
Specs
| Holds | Raspberry Pi 4, DS3231 clock board (ZS-042) |
|---|---|
| Size | 105 × 106 × 38 mm (117 × 118 mm across the ears) |
| Openings | USB-C power, screen ribbon, screen power lead, intake slots |
| Fan | Grille and screw holes for a 40 mm fan |
| Lid | Four M3 countersunk screws |
| Mounting | Four cable-tie ears |
| Material | ASA |
| Made in | USA |
Spooled is independent and not affiliated with Raspberry Pi Ltd. The name is used to describe compatibility.
Install
Screw the boards down, run the cables out through their openings, and close the lid with four screws.
- Screw the Pi to its four posts, and the clock board into its bay if you're fitting one.
- Connect the screen's ribbon and power lead, and run them out through their openings.
- Fit the lid with the four countersunk screws.
- Strap the box down with cable ties through the ears.
In the box
- Printed base and lid
- Screws for the Pi, the clock board and the lid
Ships from the US. Shipping is calculated at checkout. Problem with your order? Send us a request and we'll sort it out.
Questions
No. The enclosure holds a Raspberry Pi 4 and, if you want one, a DS3231 clock board. Both are sold separately.
It's laid out for the Pi 4, which is what SpooledOS Community runs on. We haven't tried a Pi 5 in it.
No. SpooledOS Community is free and open source; the printed parts are what we sell, and they're how Spooled pays for the work.
Anywhere behind the dash with room for it, close enough for the screen's ribbon cable to reach. Strap it down through the ears so it can't rattle.
